org.keycloak.servlet.ServletOAuthClient クラス

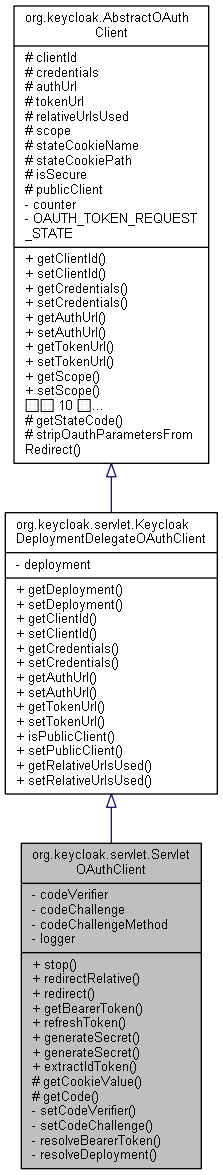

org.keycloak.servlet.ServletOAuthClient の継承関係図

org.keycloak.servlet.ServletOAuthClient 連携図

クラス
class	ServletFacade

公開メンバ関数
void	stop ()
void	redirectRelative (String relativePath, HttpServletRequest request, HttpServletResponse response) throws IOException
void	redirect (String redirectUri, HttpServletRequest request, HttpServletResponse response) throws IOException
AccessTokenResponse	getBearerToken (HttpServletRequest request) throws IOException, ServerRequest.HttpFailure
AccessTokenResponse	refreshToken (HttpServletRequest request, String refreshToken) throws IOException, ServerRequest.HttpFailure
KeycloakDeployment	getDeployment ()
void	setDeployment (KeycloakDeployment deployment)
String	getClientId ()
void	setClientId (String clientId)
Map< String, Object >	getCredentials ()
void	setCredentials (Map< String, Object > credentials)
String	getAuthUrl ()
void	setAuthUrl (String authUrl)
String	getTokenUrl ()
void	setTokenUrl (String tokenUrl)
boolean	isPublicClient ()
void	setPublicClient (boolean publicClient)
RelativeUrlsUsed	getRelativeUrlsUsed ()
void	setRelativeUrlsUsed (RelativeUrlsUsed relativeUrlsUsed)
boolean	isSecure ()
String	getScope ()
void	setScope (String scope)
String	getStateCookieName ()
void	setStateCookieName (String stateCookieName)
String	getStateCookiePath ()
void	setStateCookiePath (String stateCookiePath)
void	setSecure (boolean secure)

静的公開メンバ関数
static String	generateSecret ()
static String	generateSecret (int bytes)
static IDToken	extractIdToken (String idToken)

限定公開メンバ関数
String	getCookieValue (String name, HttpServletRequest request)
String	getCode (HttpServletRequest request)
String	getStateCode ()
String	stripOauthParametersFromRedirect (String uri)

限定公開変数類
String	clientId
Map< String, Object >	credentials
String	authUrl
String	tokenUrl
RelativeUrlsUsed	relativeUrlsUsed
String	scope
String	stateCookieName = OAUTH_TOKEN_REQUEST_STATE
String	stateCookiePath
boolean	isSecure
boolean	publicClient

非公開メンバ関数
void	setCodeVerifier ()
void	setCodeChallenge ()
AccessTokenResponse	resolveBearerToken (HttpServletRequest request, String redirectUri, String code) throws IOException, ServerRequest.HttpFailure
KeycloakDeployment	resolveDeployment (KeycloakDeployment baseDeployment, HttpServletRequest request)

非公開変数類
String	codeVerifier
String	codeChallenge
String	codeChallengeMethod = OAuth2Constants.PKCE_METHOD_S256

静的非公開変数類
static Logger	logger = Logger.getLogger(ServletOAuthClient.class)

詳解

著者

Bill Burke

バージョン

Revision

1

関数詳解

extractIdToken()

static IDToken org.keycloak.servlet.ServletOAuthClient.extractIdToken ( String  idToken )

inlinestatic

                                                         {
        if (idToken == null) return null;
        try {
            JWSInput input = new JWSInput(idToken);
            return input.readJsonContent(IDToken.class);
        } catch (JWSInputException e) {
            throw new RuntimeException(e);
        }
    }

generateSecret() [1/2]

static String org.keycloak.servlet.ServletOAuthClient.generateSecret ( )

inlinestatic

                                          {
        return generateSecret(32);
    }

generateSecret() [2/2]

static String org.keycloak.servlet.ServletOAuthClient.generateSecret ( int  bytes )

inlinestatic

                                                   {
        byte[] buf = new byte[bytes];
        new SecureRandom().nextBytes(buf);
        return Base64Url.encode(buf);
    }

getAuthUrl()

String org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.getAuthUrl ( )

inlineinherited

                               {
        throw new IllegalStateException("Illegal to call this method. Use KeycloakDeployment to resolve correct deployment for this request");
    }

getBearerToken()

AccessTokenResponse org.keycloak.servlet.ServletOAuthClient.getBearerToken ( HttpServletRequest  request ) throws IOException, ServerRequest.HttpFailure

inline

Obtain the code parameter from the url after being redirected back from the auth-server. Then do an authenticated request back to the auth-server to turn the access code into an access token.

引数

request

戻り値

例外

IOException
org.keycloak.adapters.ServerRequest.HttpFailure

                                                                                                                        {
        String error = request.getParameter(OAuth2Constants.ERROR);
        if (error != null) throw new IOException("OAuth error: " + error);
        String redirectUri = request.getRequestURL().append("?").append(request.getQueryString()).toString();
        String stateCookie = getCookieValue(stateCookieName, request);
        if (stateCookie == null) throw new IOException("state cookie not set");
        // we can call get parameter as this should be a redirect
        String state = request.getParameter(OAuth2Constants.STATE);
        String code = request.getParameter(OAuth2Constants.CODE);

        if (state == null) throw new IOException("state parameter was null");
        if (!state.equals(stateCookie)) {
            throw new IOException("state parameter invalid");
        }
        if (code == null) throw new IOException("code parameter was null");
        return resolveBearerToken(request, redirectUri, code);
    }

getClientId()

String org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.getClientId ( )

inlineinherited

                                {
        return deployment.getResourceName();
    }

getCode()

String org.keycloak.servlet.ServletOAuthClient.getCode ( HttpServletRequest  request )

inlineprotected

                                                         {
        String query = request.getQueryString();
        if (query == null) return null;
        String[] params = query.split("&");
        for (String param : params) {
            int eq = param.indexOf('=');
            if (eq == -1) continue;
            String name = param.substring(0, eq);
            if (!name.equals(OAuth2Constants.CODE)) continue;
            return param.substring(eq + 1);
        }
        return null;
    }

getCookieValue()

String org.keycloak.servlet.ServletOAuthClient.getCookieValue ( String  name, HttpServletRequest  request  )

inlineprotected

                                                                             {
        if (request.getCookies() == null) return null;

        for (Cookie cookie : request.getCookies()) {
            if (cookie.getName().equals(name)) return cookie.getValue();
        }
        return null;
    }

getCredentials()

Map<String, Object> org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.getCredentials ( )

inlineinherited

                                                {
        return deployment.getResourceCredentials();
    }

getDeployment()

KeycloakDeployment org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.getDeployment ( )

inlineinherited

                                              {
        return deployment;
    }

getRelativeUrlsUsed()

RelativeUrlsUsed org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.getRelativeUrlsUsed ( )

inlineinherited

                                                  {
        return deployment.getRelativeUrls();
    }

getScope()

String org.keycloak.AbstractOAuthClient.getScope ( )

inlineinherited

                             {
        return scope;
    }

getStateCode()

String org.keycloak.AbstractOAuthClient.getStateCode ( )

inlineprotectedinherited

                                    {
        return counter.getAndIncrement() + "/" + UUID.randomUUID().toString();
    }

getStateCookieName()

String org.keycloak.AbstractOAuthClient.getStateCookieName ( )

inlineinherited

                                       {
        return stateCookieName;
    }

getStateCookiePath()

String org.keycloak.AbstractOAuthClient.getStateCookiePath ( )

inlineinherited

                                       {
        return stateCookiePath;
    }

getTokenUrl()

String org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.getTokenUrl ( )

inlineinherited

                                {
        throw new IllegalStateException("Illegal to call this method. Use KeycloakDeployment to resolve correct deployment for this request");
    }

isPublicClient()

boolean org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.isPublicClient ( )

inlineinherited

                                    {
        return deployment.isPublicClient();
    }

isSecure()

boolean org.keycloak.AbstractOAuthClient.isSecure ( )

inlineinherited

                              {
        return isSecure;
    }

redirect()

void org.keycloak.servlet.ServletOAuthClient.redirect ( String  redirectUri, HttpServletRequest  request, HttpServletResponse  response  ) throws IOException

inline

Start the process of obtaining an access token by redirecting the browser to the authentication server

引数

redirectUri	full URI you want auth server to redirect back to
request
response

例外

IOException

                                                                                                                          {
        String state = getStateCode();
        KeycloakDeployment resolvedDeployment = resolveDeployment(getDeployment(), request);
        String authUrl = resolvedDeployment.getAuthUrl().clone().build().toString();
        String scopeParam = TokenUtil.attachOIDCScope(scope);

        // https://tools.ietf.org/html/rfc7636#section-4
        if (resolvedDeployment.isPkce()) {
            setCodeVerifier();
            setCodeChallenge();
        }

        KeycloakUriBuilder uriBuilder =  KeycloakUriBuilder.fromUri(authUrl)
                .queryParam(OAuth2Constants.RESPONSE_TYPE, OAuth2Constants.CODE)
                .queryParam(OAuth2Constants.CLIENT_ID, getClientId())
                .queryParam(OAuth2Constants.REDIRECT_URI, redirectUri)
                .queryParam(OAuth2Constants.STATE, state)
                .queryParam(OAuth2Constants.SCOPE, scopeParam);

        URI url = uriBuilder.build();

        String stateCookiePath = this.stateCookiePath;
        if (stateCookiePath == null) stateCookiePath = request.getContextPath();
        if (stateCookiePath.equals("")) stateCookiePath = "/";

        Cookie cookie = new Cookie(stateCookieName, state);
        cookie.setSecure(isSecure);
        cookie.setPath(stateCookiePath);
        response.addCookie(cookie);
        response.sendRedirect(url.toString());
    }

redirectRelative()

void org.keycloak.servlet.ServletOAuthClient.redirectRelative ( String  relativePath, HttpServletRequest  request, HttpServletResponse  response  ) throws IOException

inline

Start the process of obtaining an access token by redirecting the browser to the authentication server

引数

relativePath	path relative to context root you want auth server to redirect back to
request
response

例外

IOException

                                                                                                                                   {
        KeycloakUriBuilder builder = KeycloakUriBuilder.fromUri(request.getRequestURL().toString())
                .replacePath(request.getContextPath())
                .replaceQuery(null)
                .path(relativePath);
        String redirect = builder.toTemplate();
        redirect(redirect, request, response);
    }

refreshToken()

AccessTokenResponse org.keycloak.servlet.ServletOAuthClient.refreshToken ( HttpServletRequest  request, String  refreshToken  ) throws IOException, ServerRequest.HttpFailure

inline

                                                                                                                                           {
        KeycloakDeployment resolvedDeployment = resolveDeployment(getDeployment(), request);
        return ServerRequest.invokeRefresh(resolvedDeployment, refreshToken);
    }

resolveBearerToken()

AccessTokenResponse org.keycloak.servlet.ServletOAuthClient.resolveBearerToken ( HttpServletRequest  request, String  redirectUri, String  code  ) throws IOException, ServerRequest.HttpFailure

inlineprivate

                                                                                                                                                              {
        // Don't send sessionId in oauth clients for now
        KeycloakDeployment resolvedDeployment = resolveDeployment(getDeployment(), request);

        // https://tools.ietf.org/html/rfc7636#section-4
        if (codeVerifier != null) {
            logger.debugf("Before sending Token Request, codeVerifier = %s", codeVerifier);
            return ServerRequest.invokeAccessCodeToToken(resolvedDeployment, code, redirectUri, null, codeVerifier);
        } else {
            logger.debug("Before sending Token Request without codeVerifier");
            return ServerRequest.invokeAccessCodeToToken(resolvedDeployment, code, redirectUri, null);
        }
    }

resolveDeployment()

KeycloakDeployment org.keycloak.servlet.ServletOAuthClient.resolveDeployment ( KeycloakDeployment  baseDeployment, HttpServletRequest  request  )

inlineprivate

                                                                                                                {
        ServletFacade facade = new ServletFacade(request);
        return new AdapterDeploymentContext(baseDeployment).resolveDeployment(facade);
    }

setAuthUrl()

void org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.setAuthUrl ( String  authUrl )

inlineinherited

                                           {
        throw new IllegalStateException("Illegal to call this method");
    }

setClientId()

void org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.setClientId ( String  clientId )

inlineinherited

                                             {
        deployment.setResourceName(clientId);
    }

setCodeChallenge()

void org.keycloak.servlet.ServletOAuthClient.setCodeChallenge ( )

inlineprivate

                                    {
        try {
            if (codeChallengeMethod.equals(OAuth2Constants.PKCE_METHOD_S256)) {
                MessageDigest md = MessageDigest.getInstance("SHA-256");
                md.update(codeVerifier.getBytes());
                StringBuilder sb = new StringBuilder();
                for (byte b : md.digest()) {
                    String hex = String.format("%02x", b);
                    sb.append(hex);
                }
                codeChallenge = Base64Url.encode(sb.toString().getBytes());
            } else {
                codeChallenge = Base64Url.encode(codeVerifier.getBytes());
            }
            logger.debugf("Encode codeChallenge = %s, codeChallengeMethod = %s", codeChallenge, codeChallengeMethod);
        } catch (Exception e) {
            logger.info("PKCE client side unknown hash algorithm");
            codeChallenge = Base64Url.encode(codeVerifier.getBytes());
        }
    }

setCodeVerifier()

void org.keycloak.servlet.ServletOAuthClient.setCodeVerifier ( )

inlineprivate

                                   {
        codeVerifier = generateSecret();
        logger.debugf("Generated codeVerifier = %s", codeVerifier);
        return;
    }

setCredentials()

void org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.setCredentials ( Map< String, Object >  credentials )

inlineinherited

                                                                {
        deployment.setResourceCredentials(credentials);
    }

setDeployment()

void org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.setDeployment ( KeycloakDeployment  deployment )

inlineinherited

                                                             {
        this.deployment = deployment;
    }

setPublicClient()

void org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.setPublicClient ( boolean  publicClient )

inlineinherited

                                                      {
        deployment.setPublicClient(publicClient);
    }

setRelativeUrlsUsed()

void org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.setRelativeUrlsUsed ( RelativeUrlsUsed  relativeUrlsUsed )

inlineinherited

                                                                       {
        throw new IllegalStateException("Illegal to call this method");
    }

setScope()

void org.keycloak.AbstractOAuthClient.setScope ( String  scope )

inlineinherited

                                       {
        this.scope = scope;
    }

setSecure()

void org.keycloak.AbstractOAuthClient.setSecure ( boolean  secure )

inlineinherited

                                          {
        isSecure = secure;
    }

setStateCookieName()

void org.keycloak.AbstractOAuthClient.setStateCookieName ( String  stateCookieName )

inlineinherited

                                                           {
        this.stateCookieName = stateCookieName;
    }

setStateCookiePath()

void org.keycloak.AbstractOAuthClient.setStateCookiePath ( String  stateCookiePath )

inlineinherited

                                                           {
        this.stateCookiePath = stateCookiePath;
    }

setTokenUrl()

void org.keycloak.servlet.KeycloakDeploymentDelegateOAuthClient.setTokenUrl ( String  tokenUrl )

inlineinherited

                                             {
        throw new IllegalStateException("Illegal to call this method");
    }

stop()

void org.keycloak.servlet.ServletOAuthClient.stop ( )

inline

closes client

                       {
        getDeployment().getClient().getConnectionManager().shutdown();
    }

stripOauthParametersFromRedirect()

String org.keycloak.AbstractOAuthClient.stripOauthParametersFromRedirect ( String  uri )

inlineprotectedinherited

                                                                  {
        KeycloakUriBuilder builder = KeycloakUriBuilder.fromUri(uri)
                .replaceQueryParam(OAuth2Constants.CODE, null)
                .replaceQueryParam(OAuth2Constants.STATE, null);
        return builder.build().toString();
    }

メンバ詳解

authUrl

String org.keycloak.AbstractOAuthClient.authUrl

protectedinherited

clientId

String org.keycloak.AbstractOAuthClient.clientId

protectedinherited

codeChallenge

String org.keycloak.servlet.ServletOAuthClient.codeChallenge

private

codeChallengeMethod

String org.keycloak.servlet.ServletOAuthClient.codeChallengeMethod = OAuth2Constants.PKCE_METHOD_S256

private

codeVerifier

String org.keycloak.servlet.ServletOAuthClient.codeVerifier

private

credentials

Map<String, Object> org.keycloak.AbstractOAuthClient.credentials

protectedinherited

isSecure

boolean org.keycloak.AbstractOAuthClient.isSecure

protectedinherited

logger

Logger org.keycloak.servlet.ServletOAuthClient.logger = Logger.getLogger(ServletOAuthClient.class)

staticprivate

publicClient

boolean org.keycloak.AbstractOAuthClient.publicClient

protectedinherited

relativeUrlsUsed

RelativeUrlsUsed org.keycloak.AbstractOAuthClient.relativeUrlsUsed

protectedinherited

scope

String org.keycloak.AbstractOAuthClient.scope

protectedinherited

stateCookieName

String org.keycloak.AbstractOAuthClient.stateCookieName = OAUTH_TOKEN_REQUEST_STATE

protectedinherited

stateCookiePath

String org.keycloak.AbstractOAuthClient.stateCookiePath

protectedinherited

tokenUrl

String org.keycloak.AbstractOAuthClient.tokenUrl

protectedinherited

---

このクラス詳解は次のファイルから抽出されました:

• D:/AppData/OpenId/keycloak/doxygen/src/adapters/oidc/servlet-oauth-client/src/main/java/org/keycloak/servlet/ServletOAuthClient.java
